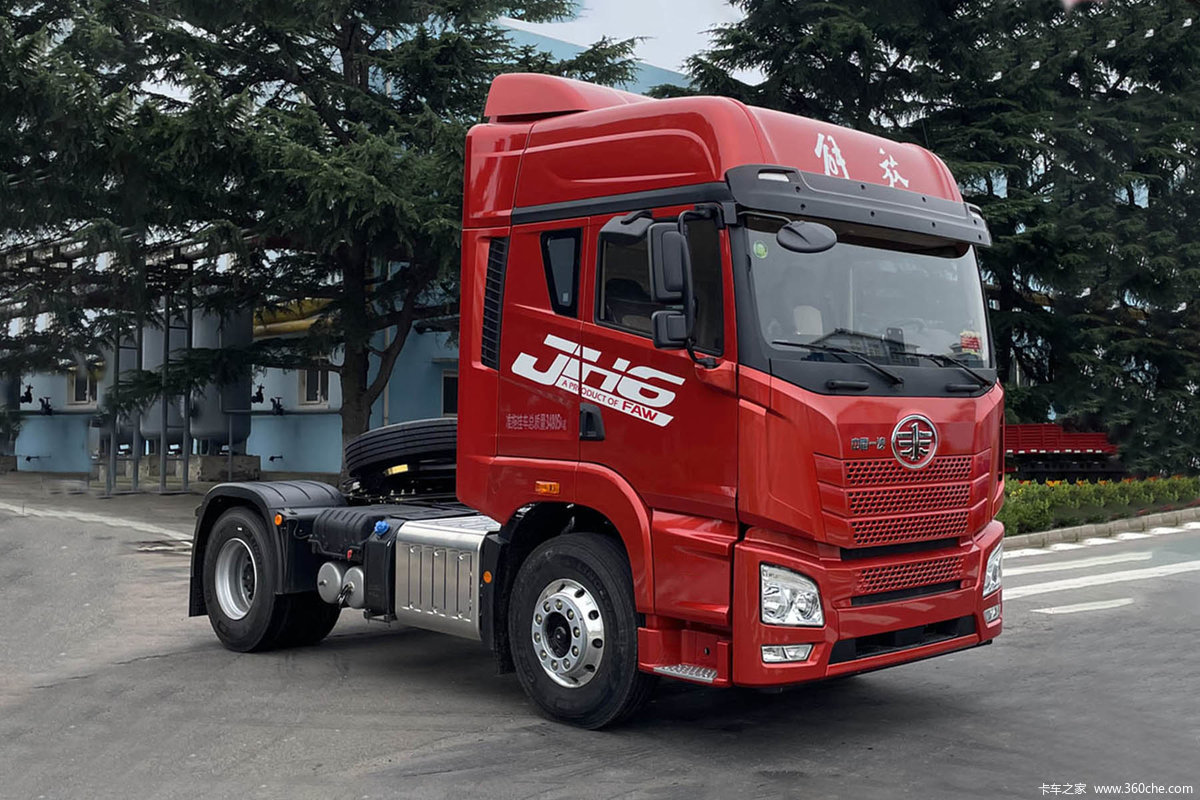

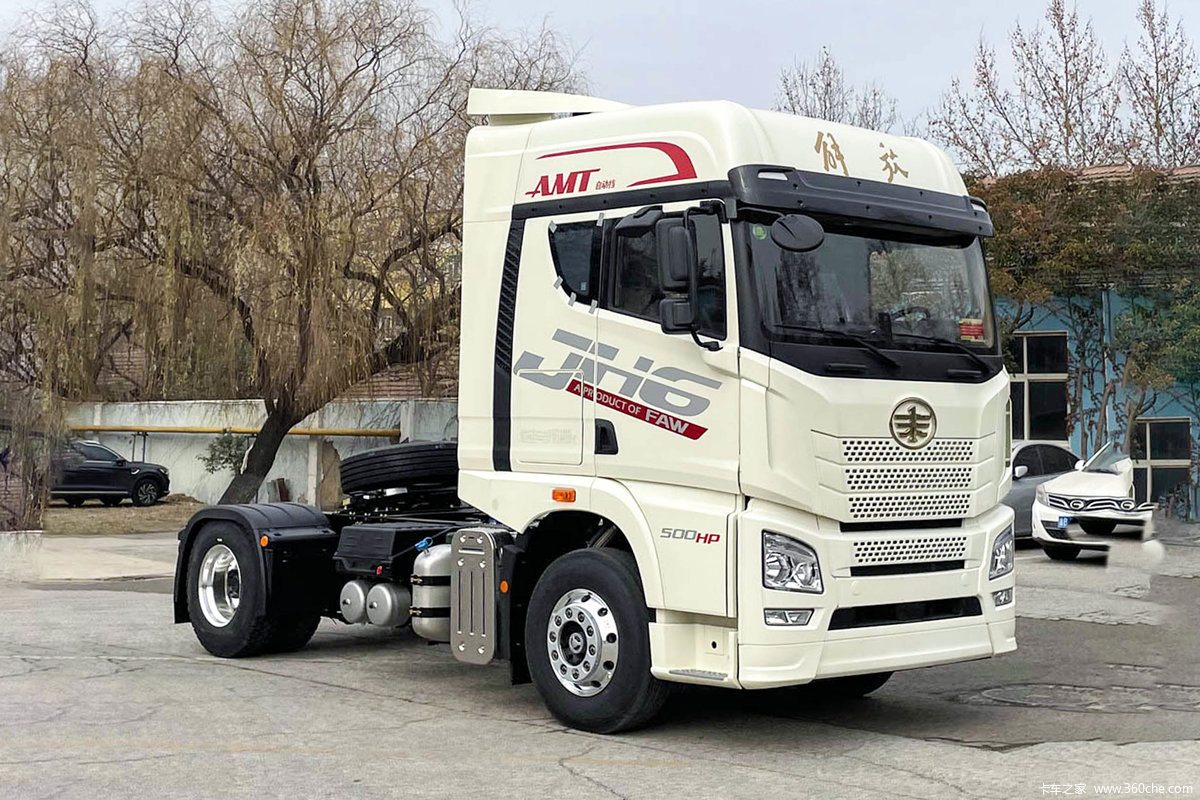

| Vehicle type CA4180 | ||
| Drive mode | 4X2 | |
| Cab | JH6/Flat floor/High roof/Row and a half/Full floating | |
| Engine | Model | WEICHAI WP12.460N/WEICHAI WP12.430N |
| Displacement (L) |
11.596 | |
| Maximum power (kw/rpm) |
338/1900，316/1900 | |
| Maximum torque/speed (Nm/rpm) |
2110/1000-1400，2060/1000-1400 | |
| Emission | Euro Ⅲ | |
| Transmission | Model | FAST C12JSDQXL220TA |
| Form/number of gears | manual /12 | |
| Ratio | 12.26-0.78 | |
| Front axle load (kg) | 7000 | |
| Front suspension | Leaf springs | |
| Rear axle load (kg) | 13000 | |
| Rear suspension | Leaf springs | |
| Rear axle model/speed ratio |
498 Punching welding (Differential Lock) -FAW Axle（io=4.444）/FAW（io=3.583） | |
| Chassis self weight (kg) | 6900 | |
| Towing Weight (kg) | 43000 | |
| Wheel base (mm) | 3900 | |
| Saddle | 50 | |
| Tire | 295/80R22.5-18 | |
| Brake system | Dual circuit air braking system/Manual valve spring cylinder storage brake/Exhaust brake |
|
